HELICAL ACQUISITION

SERIES 1: AXIAL GE:3.75X3.75 SIEMENS: 3X3 SOFT TISSUE

SERIES 2: AXIAL GE:3.75X3.75 SIEMENS: 3X3 BONE WINDOW

SERIES 3: AXIAL THINS GE:0.625X0.625 SIEMENS: 0.75X0.7

SERIES 4: CORONAL SOFT TISSUE 2X2

SERIES 5: SAGITTAL SOFT TISSUE 2X2

NON CONTRAST SHOULD BE PERFORMED PRIOR TO INJECTION

IF NOT ORDERED AS WO/W FACILITY SHOULD OBTAIN ORDER

HELICAL ACQUISITION

SERIES 1: AXIAL GE:2.5X2.5 SIEMENS: 2X2 SOFT TISSUE

SERIES 2: AXIAL GE:2.5X2.5 SIEMENS: 2X2 BONE WINDOW

SERIES 3: AXIAL THINS GE:0.625X0.625 SIEMENS: 0.75X0.7

SERIES 4: CORONAL SOFT TISSUE 2X2

SERIES 5: SAGITTAL SOFT TISSUE 2X2

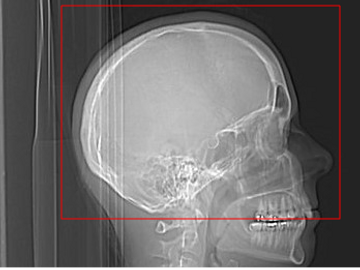

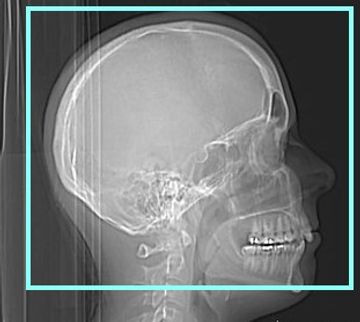

Helical acquisition. Supine. All sinuses done as Fusion protocol. FOV to include vertex of head.

2.5 X 2.0 GE standard and bone / 2.0 X 2.0 Siemens standard and bone

Reformats: 0.625x0.625 GE Standard and bone/ 0.75x0.7 Siemens standard and bone

Coronal 1.0 x 1.0 mm standard and bone

Sagittal 2.0 X 2.0 mm standard and bone

Coronal 3.0 X 3.0 mm bone for filming ( 4 across by 5 down format for film )

Helical acquisition. Supine. 1.25 x 0.625 GE standard and bone / 0.75 x 0.7 Siemens standard and bone

Reformats: Right and Left axial 10 FOV 0.625 x 0.312 GE in bone / 0.7 X 0.4 Siemens in bone

Right and Left coronal 10 FOV 0.625 x 0.312 GE in bone / 0.7 X 0.4 Siemens in bone

Right and Left plane of Poschl 10 FOV 0.625 x 0.312 GE in bone / 0.7x0.4 Siemens in bone

Right and Left plane of Stenvers 10 FOV 0.625x0.312 GE in bone / 0.7x0.4 Siemens in bn.

Poschl = Perpendicular Stenvers = Parallel

Closed mouth   - ask patient to try to align the molars (not front teeth) as best they can, ie. bite so that back teeth are touching without clenching.

Open mouth document the widest open mouth position possible biting on a syringe  as follows

10 ml syringe- 10 mm
20 ml  syringe- 20 mm
30 ml syringe- 30 mm
Bite stick Green 33 mm

Helical Supine. ( scan above the top of the TMJ through the mandibular condyle )- CLOSED Mouth

2.5mm X 2.0 GE bone / 2.0 X 2.0 Siemens

( scan above the top of the TMJ through the mandibular condyle )- OPEN Mouth

2.5mm X 2.0 GE bone / 2.0 X 2.0 Siemens

Recons: 0.625x0.625 GE bone and standard / 0.75 x0.7 Siemens bone and standard

Reformats: Coronal 2 x 2 bone and standard Bilateral together

Sagittal 2 x 2 bone and standard

Obliques through each TMJ 1 X 1 in bone

If with contrast, 100ml omni 300 2cc/sec and scan at 50 seconds.

Helical Supine. 2.5 x 2.0 GE bone / 2.0 x 2.0 Siemens bone

Recons: 2.5 x 2.0 GE standard / 2.0 x 2.0 Siemens standard

0.625 x 0.625 GE bone and standard / 0.75 x 0.7 Siemens bone and standard

Reformats: Coronal 2 x 2 bone and standard

Sagittal 2 x 2 bone and standard


 125 ml omnipaque 350 injected at 4cc/second.

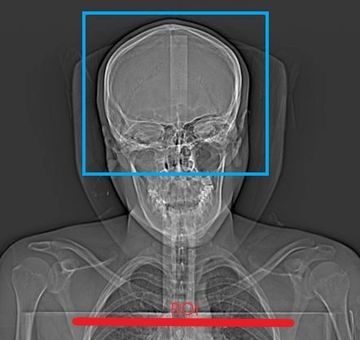

Bolus track on the Aortic Arch at 80 HU.

Do Routine Head W/O 3.75 x 3.75 GE / 3.0 x 3.0 Siemens bone and standard algorithms C-2 through vertex of head


 Helical: 2.5 x 2.0 GE standard / 2.0 x 2.0 Siemens standard 800 W 100 L

Recons:0.625 x 0.625 GE standard 400 W 40 L / 0.75 x 0.7 Siemens standard 400 W 40 L

1 x 1 mm 800 W 100 L

coronal MIP 14 x 4 GE / 16 x 4 Siemens 800 W 100 L

sagittal MIP 14 x 4 GE / 16 x 4 Siemens 800 W 100 L

axial MIP 14 x 4 GE / 16 x 4 Siemens 800 W 100 L

C.O.W. MIP 14 x 4 GE / 16 x 4 Siemens 800 W 100 L

coronal MPR 2 x 2

sagittal MPR 2 x 2

VRT of COW rotate and tumble every 10 degrees


125 ml omnipaque 350 injected at 4cc/second. 40 second delay

Do Routine Head W/O 3.75x3.75 GE/3.0x3.0 Siemens bone and standard algorithms
C-2 through vertex of head

Helical: 2.5x2.0 GE standard /2.0x2.0 Siemens standard 800W 100L

Recons: 0.625x0.625 GE standard 400W 40L / 0.75x0.7 Siemens standard 400W 40L

Coronal MIP 14x4 GE/16x4 Siemens 800W 100L

Sagittal MIP 14x4 GE/16x4 Siemens 800W 100L

Oblique mip to the dural venous sinuses ( remove bone)

Coronal MPR 2x2

Sagittal MPR 2x2
